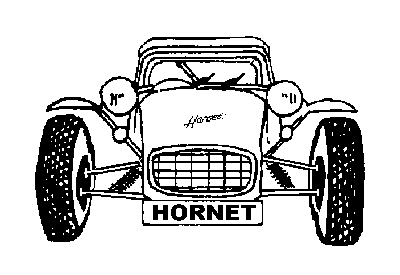

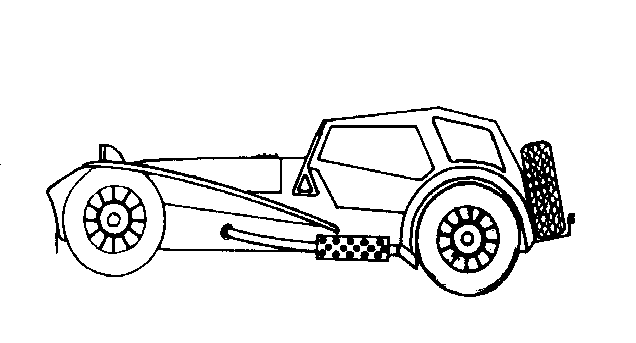

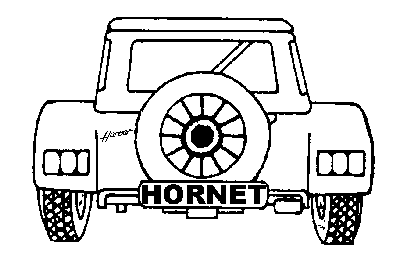

The Hornet
|
| Engine & Transmission |
 |
||||||||
|
Engines: |
Ford O.H.C. |
- 1600cc or 2 litre |
|||||||
|
Cooling: |
Ford Cortina |
3, 4, or 5 radiator |
|||||||
|
Gearbox: |
Ford Cortina |
||||||||
|
Propshaft: |
Ford Cortina |
(shortened) |
|||||||
|
Rear Axle: |
Ford Cortina |
1600cc or 2 litre |
|||||||
|
Wheels: |
Ford Cortina |
||||||||
|
Tyre size: |
(max) 205/60 |
R 13 |
|||||||
| Dimensions & weights | |||
 |
Overall length: |
11’ 6" |
|
|
Overall width |
5’ 5" |
||
|
Cockpit width |
39½" |
||
|
Cockpit length: |
43" (pedals to seat riser) |
||
|
Seat squab width: |
16" |
||
|
Ground clearance: |
5" |
||
|
Total weight: |
745kgs |
||
|
Body /Chassis |
||
|
Body: |
Wood and aluminium with fibreglass wings, nose cone and dashtop |
|
|
Chassis: |
Ladder frame |
|
|
Suspension: |
Front:
Rear: |
Ford Cortina wishbones
or Ford Cortina |
|
Brakes: |
Front: Rear: |
Ford Cortina discs and
calipers Ford Cortina drum |
|
Steering: |
Ford Cortina rack and pinion |
|
Price List - Effective from 25 April 1999. |
PRICE £:P |
|
Plans and Manual |
67.00 |
|
*Chassis (Finished in red oxide) |
475.00 |
|
T&J Front Suspension Units |
490.75 |
|
Replacement rear coil springs |
55.00 |
|
Chassis padding (8 metres) |
30.00 |
|
Steering Column extension |
50.00 |
|
Pedal box to servo plate (mild steel) |
22.70 |
|
Roll bar (finished in red oxide) |
90.45 |
|
Spare wheel carrier (finished in red oxide) |
25.00 |
|
Number plate & light bracket (finished in red oxide) |
29.00 |
|
Petrol tank (finished in red oxide) |
116.75 |
|
Aluminium skinned body tub (with fitted dash top) |
610.00 |
|
Windscreen & rubber |
180.35 |
|
Triangle brackets |
50.00 |
|
Bonnet (aluminium with louvres) |
98.50 |
|
Bonnet catches (set) |
80.00 |
|
G.R.P. set: |
400.00 |
|
Dash top in G.R.P. (matt white) |
80.00 |
|
Heater box cover in G.R.P. |
35.00 |
|
Pedal box cover in G.R.P. |
38.00 |
|
Wing piping(coloured) per metre |
3.00 |
|
Wing stays with radiator top mounting bracket (Flowing wings) |
70.00 |
|
(Finished in red oxide) (cycle wings) |
72.20 |
|
Stone guards (pair) |
70.00 |
|
Exhaust heat shield |
70.00 |
|
Trimmings etc. black; blue, light grey, dark grey, |
|
|
*Hood (complete with poppers & webbing) |
224.50 |
|
*side screens (pair) |
156.30 |
|
Hood frame (c/w brackets) |
47.25 |
|
Side screen hinges (4 pairs) |
12.75 |
|
*Tonneau (c/w poppers) cut out for roll bar at a later date |
160.00 |
|
*Seat backs and squabs |
165.25 |
|
‘Hornet’ stick-on badges (each) |
3.50 |
|
* Note: These items are not kept in stock but made to order. A £50.00 minimum deposit is required. |
 |
|
|
